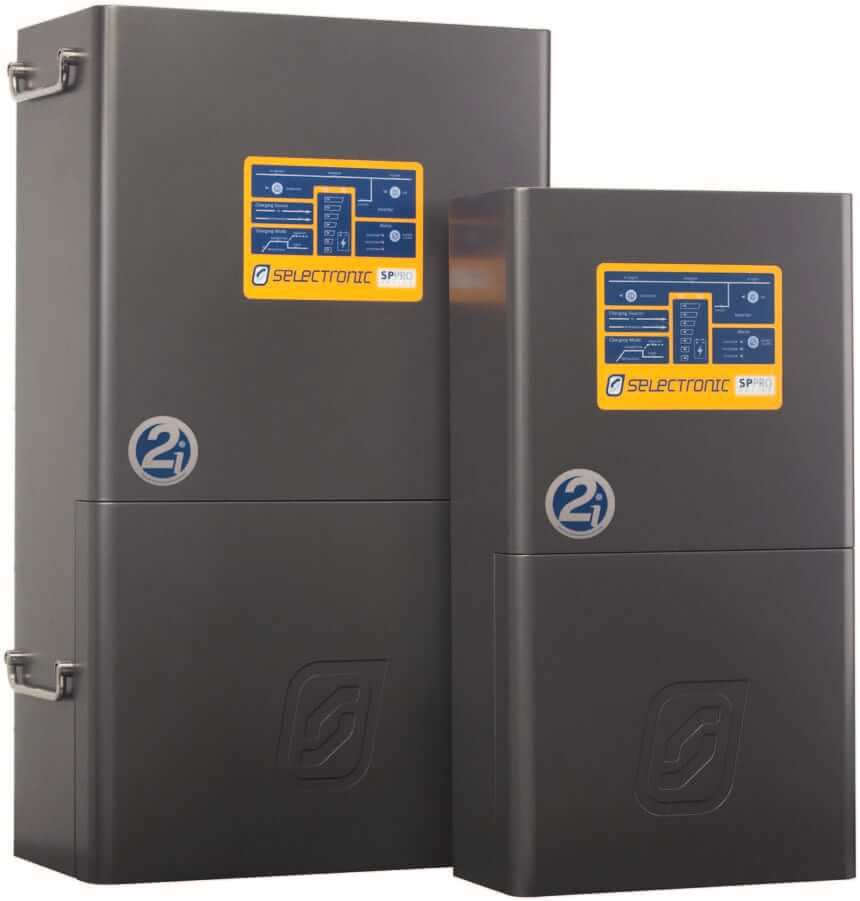

SP PRO Series 2i
The world’s smartest bi-directional inverter charger now comes with built-in advanced communications as standard. Whether you live (or want to live) off-grid, or on-grid and want to add battery storage, the SP PRO bi-directional inverter charger can control and manage every aspect of your energy needs. By incorporating solar, wind, hydro, with a diesel generator and/or grid supply, you can be sure your whole site will never be without power. Start with the customer – find out what they want and give it to them.
Selectronic Managed AC Coupling
To utilise all of the possibilities of an SP PRO, it needs to work with a Selectronic Certified grid-tie inverter.
These inverters contain hardware and software to enable direct communication with the SP PRO. This means that the SP PRO has control of the flow of energy from the solar panels with as fine control as 0.1% steps. This is known as Managed AC Coupling technology which was developed by Selectronic in 2010, and cannot be achieved with a generic grid-tie inverter.
The Selectronic Certified grid-tie inverter can be considered as an AC MPPT. By creating an AC Bus, an AC coupled system will allow PV energy to be efficiently used directly by the load with excess PV energy going back through the multi-mode SP PRO to charge batteries or export to the grid.
A maximum of five (5) Selectronic Certified inverters can be controlled by any single SP PRO, but the total AC output of the combined grid-tie inverters must not exceed twice the continuous power rating of the SP PRO, or the SP PRO 30 second rating, whichever is smallest.
When using a Selectronic Certified grid-tie inverter, site consumption and generation data will be logged by the SP PRO including the AC coupled solar production.
When to use Selectronic Certified Grid-tie inverters
- Off-grid AC coupling
- Solar Hybrid AC coupling with Fixed Export Limit requirements (with or without batteries)
- Solar Hybrid AC coupling where twice the PV to SP PRO rating is required
Want solar but not ready to add battery storage?
Benefits of using Selectronic Certified
- The total AC output of the combined grid-tie inverters can be up to twice the continuous power rating of the SP PRO or the SP PRO 30 second rating, whichever is smallest.
- Maximise battery life via precise charging control
- No frequency variations to the loads.
- All system data is captured by SP LINK software
- Full support from Selectronic

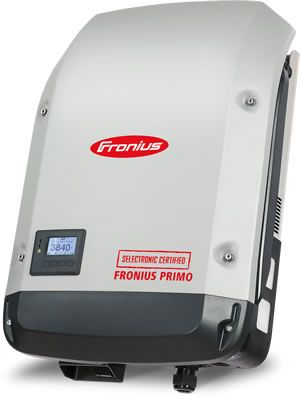

Fronius String Inverters
Selectronic and Fronius are aligned in many ways. Not only does the SP PRO integrate seamlessly with Fronius and batteries to give people more choice and flexibility over how their home is powered, but we share the foundation of being a family-run company with a commitment to reliability and customer support.
The Selectronic Certified Fronius Primos are available in power categories from 3.0 to 8.2 kW.
This single-phase device with Its innovative SuperFlex Design provides maximum flexibility in system design, while the SnapINverter mounting system makes installation and maintenance easier than ever before.
Whether a Solar Hybrid system or fully off-grid, a Fronius Selectronic Certified inverter will integrate seamlessly with the SP PRO via Managed AC Coupling connectivity.
A simple plug and play connection to the SP PRO makes installation to a battery system very simple.
Install today, add batteries tomorrow
Easy to read LCD display
Compliant to AS4777.2:2015
